- Description

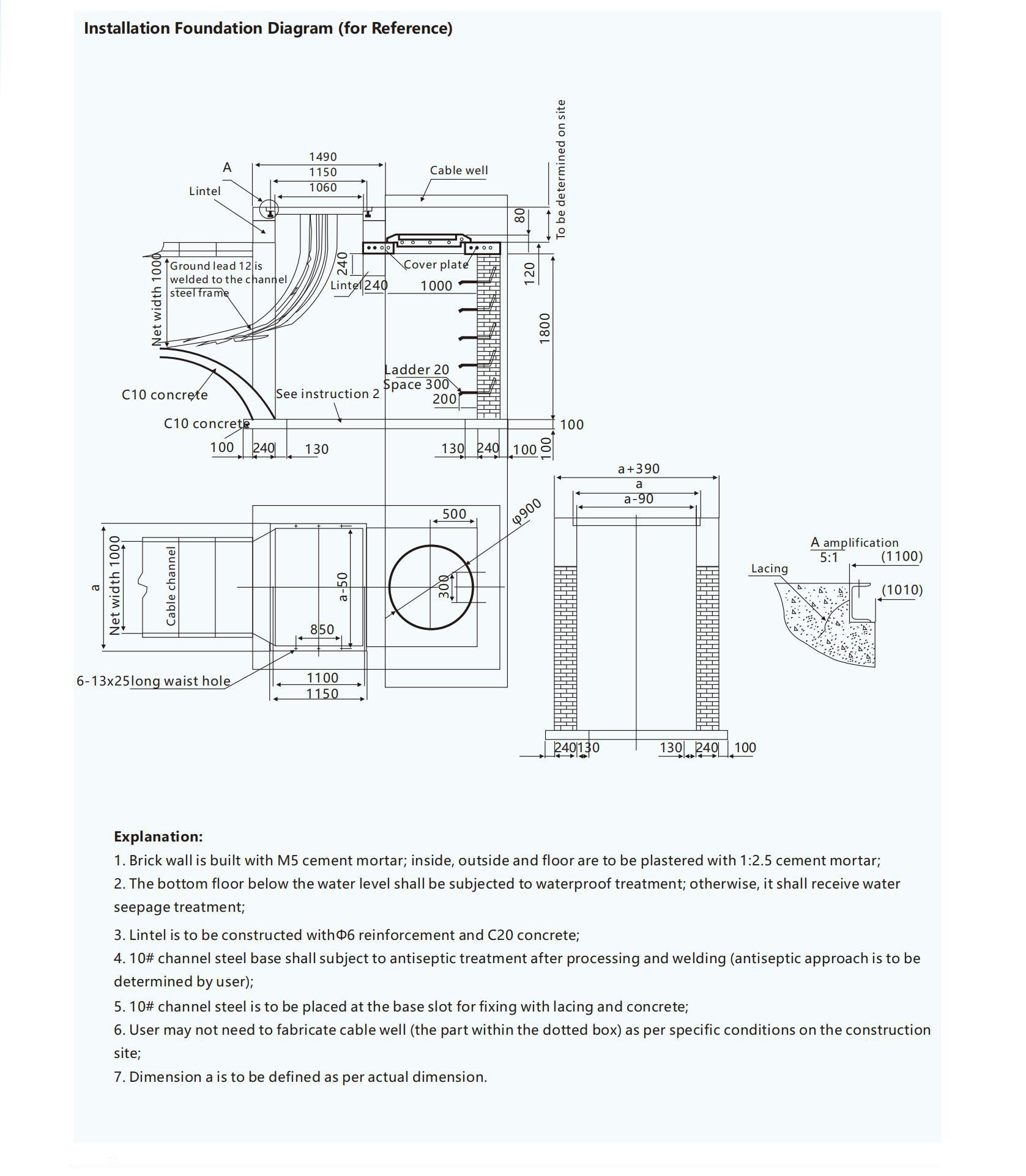

- Installation Foundation Diagram

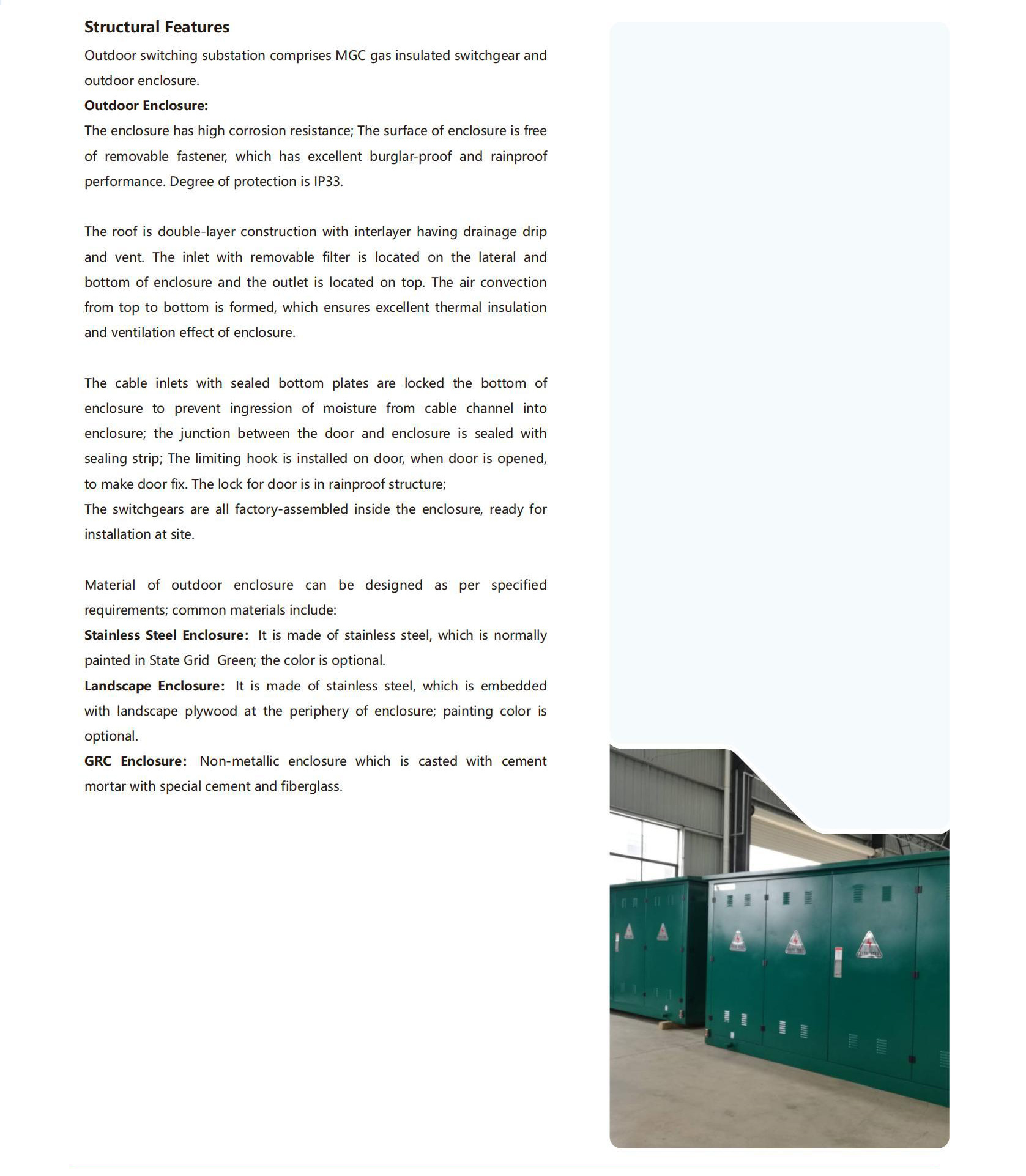

- Structural Features

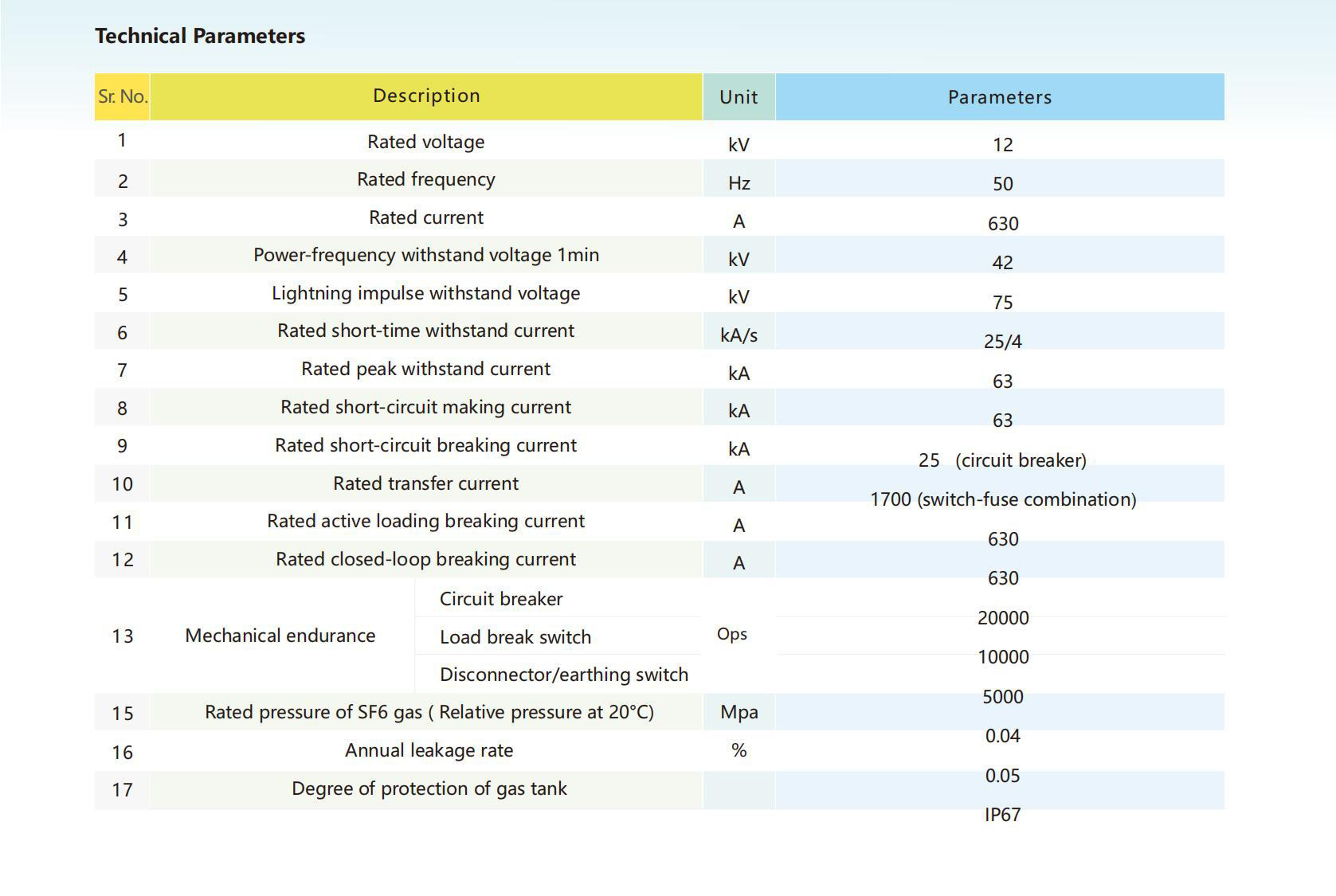

- Technical Parameters
-
- Commodity name: Outdoor Medium-Voltage Switchgear Catalogues

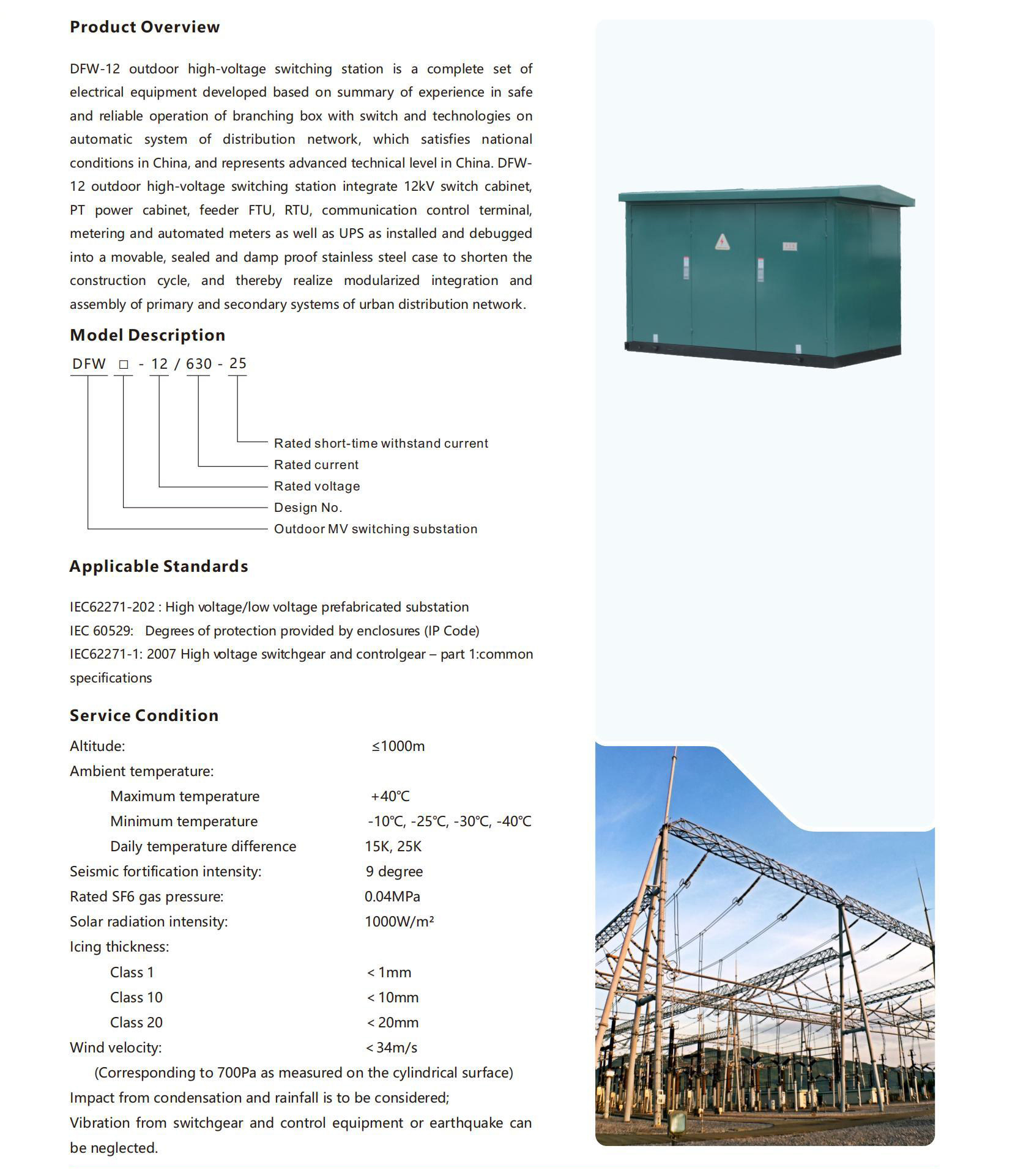

DFW-12 outdoor high-voltage switching station is a complete set ofelectrical equipment developed based on summary of experience in safeand reliable operation of branching box with switch and technologies onautomatic system of distribution network, which satisfies nationalconditions in China, and represents advanced technical level in China. DFW.12 outdoor high-voltage switching station integrate 12kV switch cabinet.PT power cabinet, feeder FTU, RTU, communication control terminalmetering and automated meters as well as UpS as installed and debuggedinto a movable, sealed and damp proof stainless steel case to shorten theconstruction cycle,and thereby realize modularized integration andassembly of primary and secondary systems of urban distribution network.
-
-
-
